Alemite 10:1 Ratio Pneumatic Ram Oil Pump. Universal or Stub length, so it can be used in any sized container. If suction tube will be longer than 60” use 321206 low level cut off/check valve to avoid loss of prime. The 10:1 ratio provides double the fluid pressure of the 5:1 ratio pumps, but half the volume at the same pump speed, so it will push light lubricants up to 300’ with through 1” I.D. pipe or tubing. Call us for proper application.
-

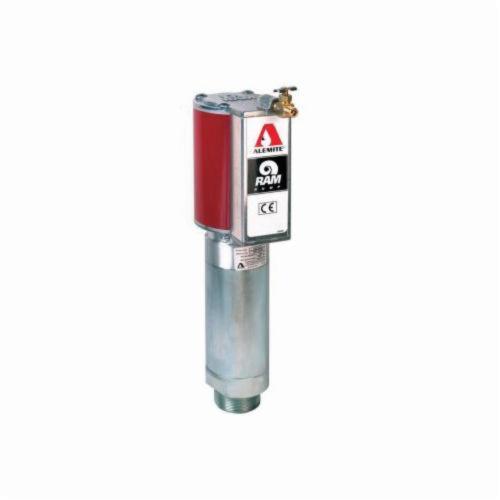

10:1 Ram Stub Pump
$1,332.95#9970View Product
10:1 Ram Stub Pump
#9970Alemite 10:1 Ratio Pneumatic Ram Oil Pump. Universal or Stub length, so it can be used in any sized container. If suction tube will be longer than 60” use 321206 low level cut off/check valve to avoid loss of prime. The 10:1 ratio provides double the fluid pressure of the 5:1 ratio pumps, but half the volume at the same pump speed, so it will push light lubricants up to 300’ with through 1” I.D. pipe or tubing. Call us for proper application.
View all product informationProduct details
- Universal or Stub Length-Attach the suction tube of your choice
- 3/8” Material outlet, ¼” air inlet
- 3” Air Motor, 10:1 Ratio
- 1500 psi maximum fluid outlet pressure
- 3.5 gallons per minute, maximum free flow
- Includes 326750-E1 Bung Adapter
- 14 lbs
$1,332.95
Quick View -

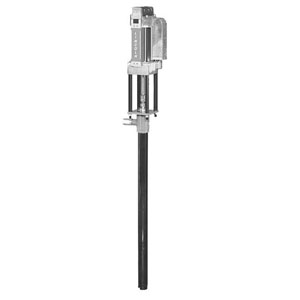

12:1 Lincoln PowerMaster III Heavy duty, high pressure oil pump for 55 gallon drum
$3,395.20#2001View Product12:1 Lincoln PowerMaster III Heavy duty, high pressure oil pump for 55 gallon drum
#2001Lincoln’s Famous PowerMaster III 12:1 ratio oil pump for use in 55-gallon drums.
View all product informationProduct details
- Lincoln’s bullet proof PowerMaster III air motor design in 4.25” for high volume, reliable delivery
- 12:1 ratio provides extra pressure for very large shops or multiple simultaneous dispense
- This pump is a beast, and should be order for the busiest, highest volume shops
- 12.3 gpm free flow
- ½” air inlet, ¾” fluid outlet
- Includes 55-gallon drum length pump and air couplers
$3,395.20
Quick View -
1:1 Lincoln Transfer pump with spout and air regulator-55 gallon drum size
$1,126.80#82230View Product1:1 Lincoln Transfer pump with spout and air regulator-55 gallon drum size
#82230Lincoln 1:1 ratio Pneumatic fluid transfer pump for use in 55 gallon drums.
View all product informationProduct details
- Works with all light fluids compatible with carbon steel and Buna wetted parts (call us if you are in doubt)
- High volume, low pressure transfer (up to 20 gpm) directly out of 55 gallon drums
- Includes integral spout that can be connected to fluid hose and built in air control. Also includes bung adapter to mount pump in 2” drum or tank bung
$1,126.80
Quick View -
1:1 Lincoln value series transfer pump for oil
$429.30#4480View Product1:1 Lincoln value series transfer pump for oil
#4480Lincoln low volume, low cost transfer pump for light lubricants.
View all product informationProduct details
- Features Lincoln’s series 4491 3.5:1 ratio, horizontal, valved piston pneumatic pump (6 gpm free flow)
- Includes integral delivery spout and shut off valve
$429.30
Quick View -
1:1 Pump Package
$1,518.55#239-702View Product1:1 Pump Package
#239-702Graco 1:1 ratio “Fast-Ball” oil pump with metered dispense kit and air regulator.
View all product informationProduct details
- Fits in the 2” bung and is sized for a 55-gallon drum
- Includes electronic in-line meter and spring loaded dispense spigot
- Up to 5 gallons per minute if you need it-most users set it at a max of 1 gpm
- ¼” air inlet, ¾” fluid outlet
- Excellent, economical dispense solution for lower use lube products (lube oils, synthetics, atf, hydraulic)
$1,518.55
Quick View -

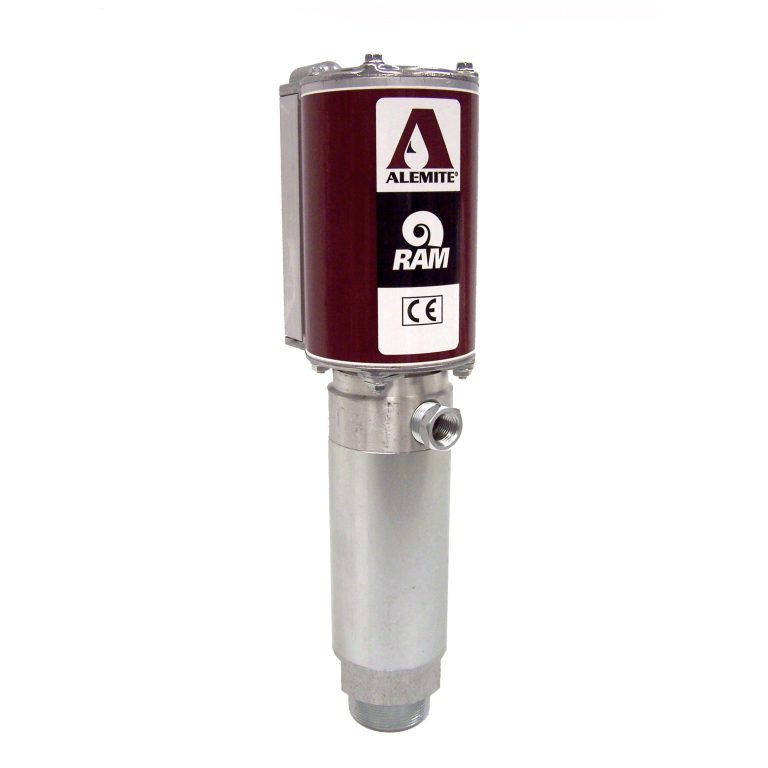

1:1 Transfer Pump
$730.70#9916-A1View Product
1:1 Transfer Pump
#9916-A1Alemite 1:1 Ratio Pneumatic Ram Oil Pump. Suitable for high volume, low pressure transfer and dispense of light lubricants. Not recommended for feeding hose reels or oil bars, as maximum fluid pressure is 150 psi.
View all product informationProduct details
- Stub or universal length-Attached your desired length of 1.5” suction pipe
- 1/2” fluid outlet, ¼” Air Inlet
- 3” air motor, 1:1 ratio
- 16 gallons per minute, maximum free flow delivery
- Integral bung adapter
- 17 lbs
$730.70
Quick View -
1:1 Transfer Pump
$500.06#9916-A1View Product1:1 Transfer Pump
#9916-A1stationary RAM stub pump includes integral bung adapter, 16 gal deliv
View all product informationProduct details
- Stub or universal length-Attached your desired length of 1.5” suction pipe
- 1/2” fluid outlet, ¼” Air Inlet
- 3” air motor, 1:1 ratio
- 16 gallons per minute, maximum free flow delivery
- Integral bung adapter
- 17 lbs
$500.06
Quick View -
1:1 Universal Pump
$562.32#222-051View Product1:1 Universal Pump
#222-051Graco 1:1 ratio “Fast-Ball” universal length oil pump.
View all product informationProduct details
- Universal length-attach any length 1.5” suction tube to accommodate your tank or container size
- ¼” air inlet, ¾” fluid outlet
- Up to 5 gpm-use for transfer or dispense
- Works with all light viscosity lubricants
$562.32
Quick View -
3: 1 Pump Package
$600.60#24G-579View Product3: 1 Pump Package
#24G-579Graco 3:1 ratio LD oil pump with bung adapter and cut-to-length down tube.
View all product informationProduct details
- Down tube will accommodate any container 44” tall or less-cut to length for shorter than 44”
- Built in thermal relief protects your system from thermal expansion
- 450 psi max fluid pressure at pump outlet-use this pump to supply one or two dispense points, depending on distances
- ¼” air inlet, ½” fluid outlet
- 5-year limited warranty on non-wear parts
$600.60
Quick View -
3: 1 Universal Pump-mini Fireball
$787.99#246-775View Product3: 1 Universal Pump-mini Fireball
#246-775Graco “Mini-Fireball” 3:1 ratio universal length oil pump.
View all product informationProduct details
- 2.25” diameter Fireball air motor (less volume and pressure than standard Fireball)
- Use for 1 to 3 dispense point, depending on distances
- 3/8” air inlet, ½” fluid outlet
- Universal length-attach appropriately long down tube to accommodate your tank or container
- Just less than 2 gpm under normal usage conditions (at pump outlet)
- 540 psi max fluid pressure at pump outlet
$787.99
Quick View -

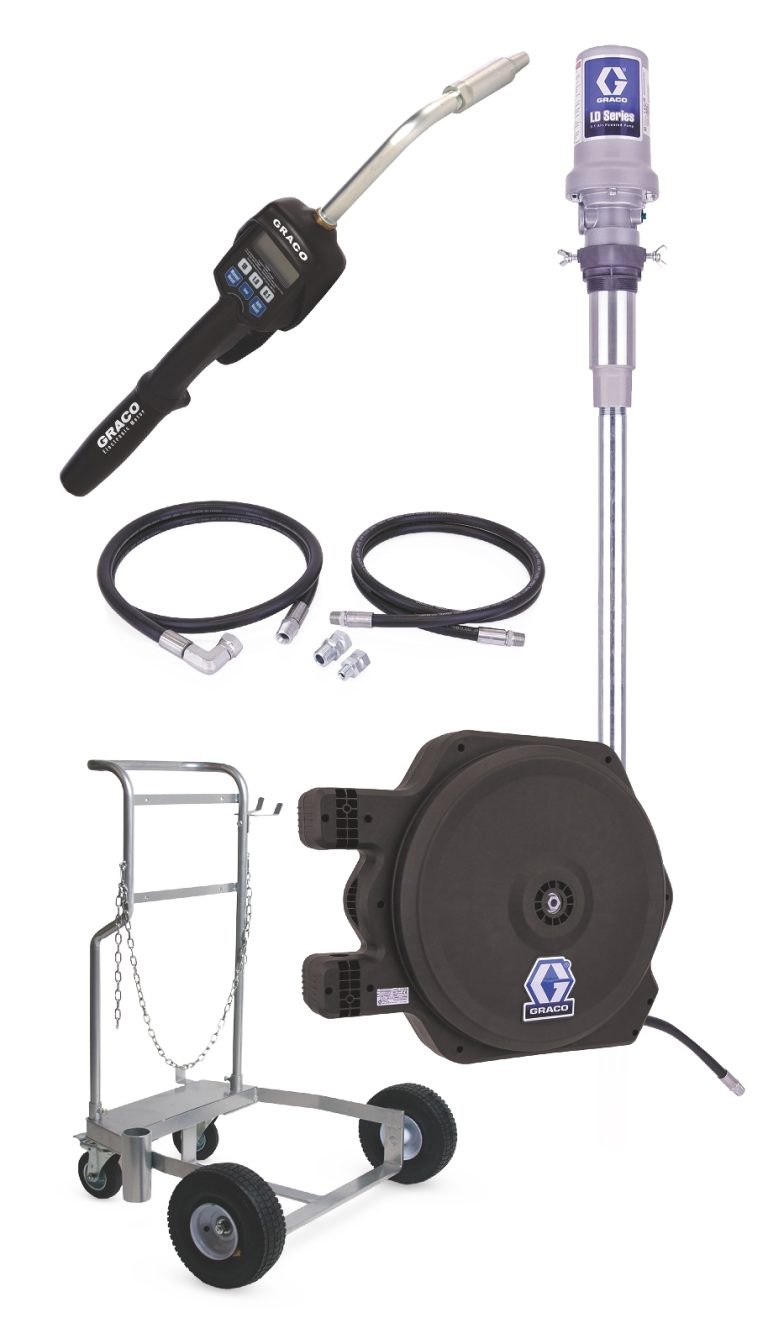

3:1 LD Series Mobile Oil Package
$2,039.95#24H-753View Product
3:1 LD Series Mobile Oil Package
#24H-753Graco portable LD dispense package for use with 55 gallon drums.
View all product informationProduct details
- Includes 3:1 LD pump, 35’ LD oil reel, electronically metered dispense valve, and 55 gallon drum cart
- Excellent for lower use drum-based products
- Includes all necessary hose and fittings
- Large tires on cart provide easy portability
$2,039.95
Quick View -
3:1 Lincoln Portable gear lube dispense system for 16 gallon keg
$1,422.47#2435View Product3:1 Lincoln Portable gear lube dispense system for 16 gallon keg
#2435Lincoln 3:1 ratio portable, metered oil dispense package for 120 lbs (16 gallon) drums.
View all product informationProduct details
- Includes 3:1 ratio series 25 pump
- Also includes mechanical pint meter (great for gear lube or ATF), drum cover, caster base, delivery hose, and dispense nozzle
- Just assemble and add air
$1,422.47
Quick View -
3:1 Lincoln Series 25 oil pump package for 275 obround tanks
$906.40#284168View Product3:1 Lincoln Series 25 oil pump package for 275 obround tanks
#284168Lincoln series 25 (25 cubic inch air motor) 3:1 ratio light lubricant pump package for use with 275-gallon obround (traditional fuel oil) tanks.
View all product informationProduct details
- Lincoln’s most popular oil pump model
- 275 obround tank configuration allows use on any 275-gallon tank (about 44” tall) without further modification
- Includes pump with head cover, air and fluid hose and fitting kit, bung adapter, 275-gallon tank length suction tube
- ¼” air inlet, ½” fluid outlet
- Unmatched reliability backed by 5-year warranty.
- Suitable for use in small to medium shop with several dispense points
$906.40
Quick View -
3:1 Lincoln Series 25 oil pump package for use on Lube truck
$1,152.64#284231View Product3:1 Lincoln Series 25 oil pump package for use on Lube truck
#284231Lincoln series 25 (25 cubic inch air motor) 3:1 ratio light lubricant pump package for use with 55-gallon drums on a mobile platform (lube truck, mobile maintenance truck).
View all product informationProduct details
- Lincoln’s most popular oil pump model
- 55-gallon mobile configuration allows use on any 55 gallon open head drum, and includes hardware to mount drum on truck
- Includes pump with head cover, air and fluid hose and fitting kit, special drum cover with tie down lugs and drum tie downs, 55-gallon tank length suction tube
- ¼” air inlet, ½” fluid outlet
- Unmatched reliability backed by 5-year warranty
$1,152.64
Quick View -
3:1 Lincoln Series 25 oil pump-universal
$874.94#282398View Product
3:1 Lincoln Series 25 oil pump-universal
#282398Lincoln series 25 (25 cubic inch air motor) 3:1 ratio light lubricant stub pump package.
View all product informationProduct details
- Lincoln’s most popular oil pump model
- Stub (universal) configuration allows use on any sized container-just add appropriate suction tube
- Includes pump with head cover, air and fluid hose and fitting kit, bung adapter
- ¼” air inlet, ½” fluid outlet
- Unmatched reliability backed by 5-year warranty
- Suitable for use in small to medium shop with several dispense points
$874.94
Quick View -
3:1 Ram Stub Pump
$482.60#9918-AView Product
3:1 Ram Stub Pump
#9918-AAlemite 3:1 Ratio Pneumatic Ram Oil Pump. Excellent for feeding 1-3 hose reels or oil bars with light lubricants (Motor Oil, ATF, Hydraulic).
View all product informationProduct details
- Stub or Universal length-Attach your desired length of 1.5” suction pipe
- ½” Fluid Outlet, ¼” Air Inlet
- 3” Air Motor, 3:1 ratio
- 450 psi maximum fluid outlet pressure
- 9 gallons per minute, maximum free flow delivery
- Integral bung adapter
- 17 lbs
$482.60
Quick View -
3:1 Ram Stub Pump
$369.60#9918-AView Product3:1 Ram Stub Pump
#9918-Astationary RAM stub pump includes integral bung adapter, 9 gal deliv
View all product informationProduct details
- Stub or Universal length-Attach your desired length of 1.5” suction pipe
- ½” Fluid Outlet, ¼” Air Inlet
- 3” Air Motor, 3:1 ratio
- 450 psi maximum fluid outlet pressure
- 9 gallons per minute, maximum free flow delivery
- Integral bung adapter
- 17 lbs
$369.60
Quick View -
5:1 16 Gal Ram Pump
$637.73#9960View Product5:1 16 Gal Ram Pump
#9960Alemite 5:1 Ratio Pneumatic Ram Oil Pump, for use with 16 gallon (120 lbs) drums. Perfect for feeding a series of hose reels or oil bars. Allows for simultaneous dispense at 2 dispense points. Good for dispense distances up to 200’ with ¾” I.D. pipe or tubing. Durable and easy to repair.
View all product informationProduct details
- 16 gallon (120lbs. drum) length fixed suction tube
- ½” fluid outlet, ¼” air inlet
- 3” Air Motor, 5:1 Ratio
- 750 psi maximum fluid outlet pressure
- 7 gallons per minute, maximum free flow delivery
- Includes 326750-B1 Bung Adapter
- 18 lbs
$637.73
