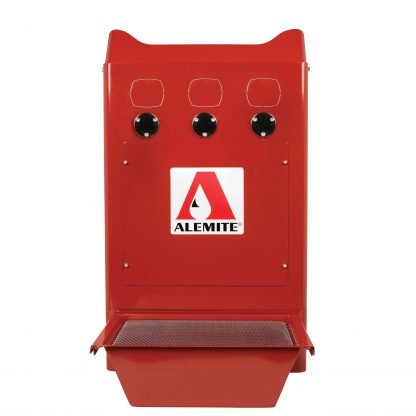

Alemite Oil Dispense Bar with Drip Pan 343090
Alemite Oil Dispense Bar with Drip Pan 343090 - Image 2

Alemite Oil Dispense Bar with Drip Pan 343090

MODEL: 343090

An Effective Alternative to Hose Reels or Hose Drops.  This Convenient Oil Dispense Bar Mounts on the Wall and can Accommodate up to 3 Fluids.  No Spigot included.  Order for one would be part# 343091-1.  You would need a Spigot for each Fluid Piped to the Oil Bar.



$469.60

* Shipping calculated based on weight
Description
Alemite's New Oil Bar Line includes a Compact, Modular Oil Bar capable of Accommodating up to Three Spigots.  Locking and Non-Locking Spigots are available for use with the unit.  A Brass Flow Control Valve is offered to Control Pressure and Flow at the Spigot, and an Optional Inline Digital Meter Measures Fluid.
Specifications
  • Steel Construction
  • Modular Design
  • 3-Spigot Capacity
  • 2.9 Gallon (11 liter) Removable Reservoir/Drain
  • Hole Knockouts for Inline Digital Meter
  • Overall Dimensions:  33.39″ (85cm) tall x 19.69″ (50cm) wide x 3.94″ (10cm) deep; 14.36″ 936cm) deep with removable reservoir
  • Weight 36.1 lbs
